Module Toyota Denso Yaris GR Turbo

Software module for editing calibrations of Denso ECU for petrol Toyota GR Yaris and GR Corolla 1.6 Turbo vehicles with G16E-GTS engine

Allows to edit MCU1 8A230-X2XXX and MCU0 8A220-X2XXX

Only 4Mb filesize supported.

Available maps for MCU1 8A230-X2XXX:

Air control: Efficiency in additional mode, Maximal mass air flow

Boost control: limitation: Boost correction factor, Maximal boost pressure absolute, Torque clamp boost limiter, Boost limitation absolute, Boost limitation by torque, Boost limitation relative, Maximal boost relative

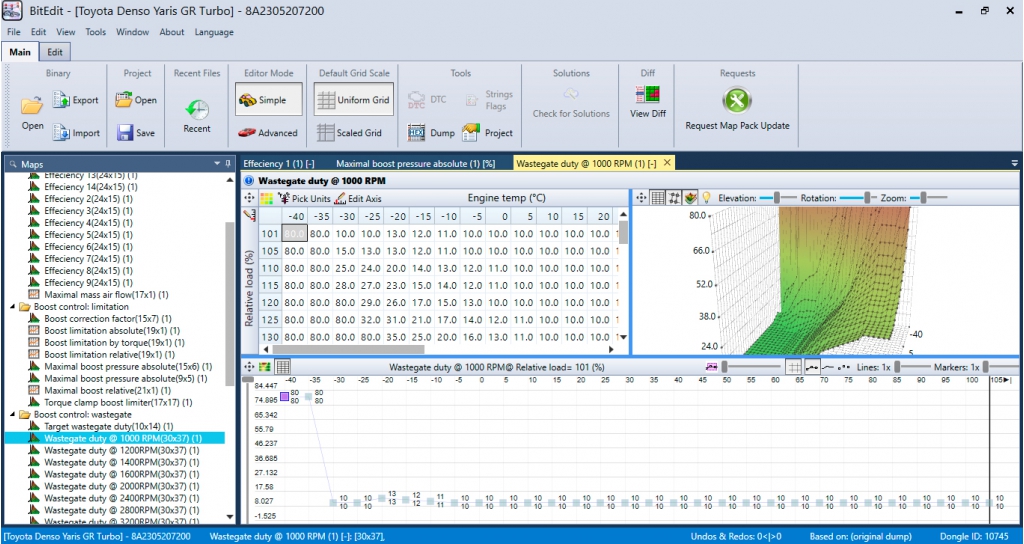

Boost control: wastegate: Target wastegate duty, Wastegate duty in additional speed

Camshaft Control: Intake Camshaft, Intake camshaft correction, Intake camshaft correction factor

Engine speed limit: Engine speed limitation

Fuel Pressure: Target fuel pressure, Maximum fuel pressure

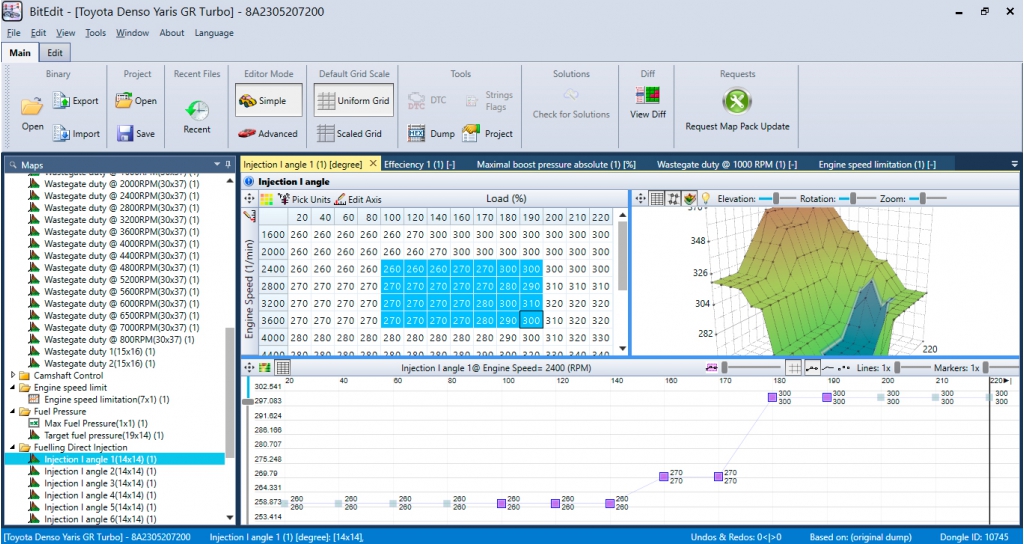

Fuelling Direct Injection: Injection I angle in additional mode, Injection II angle in additional mode

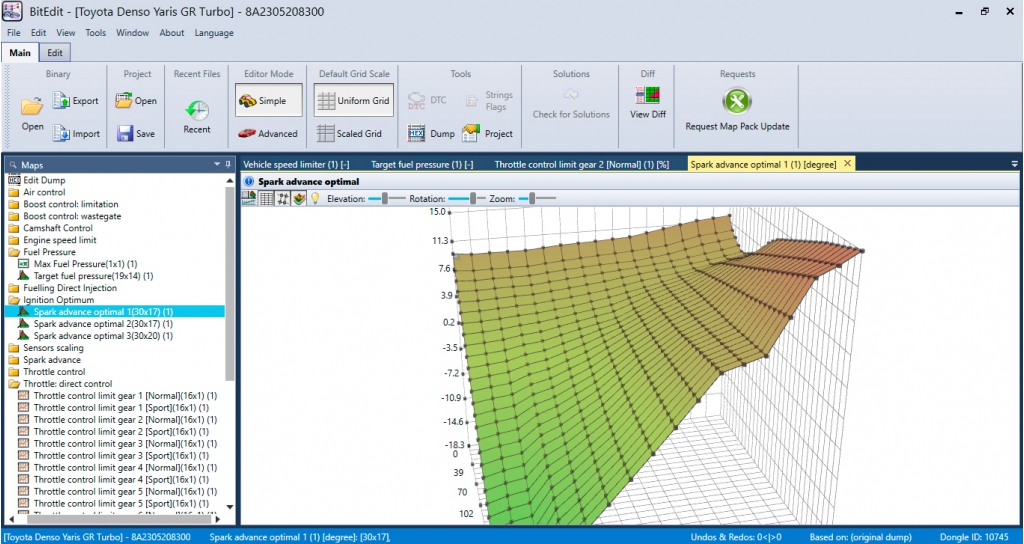

Ignition Optimum: Spark advance optimal

Sensors scaling: Mass air flow sensor scaling

Spark advance: Ignition efficiency, Minimal spark advance, Spark advance in additional mode, Spark advance main, Spark advance retardation on camshaft, Spark advance warmup correction

Throttle control: Primary throttle efficiency in additional gear, Primary throttle efficiency 1 [Normal mode], Primary throttle efficiency 1 [Sport mode], Primary throttle efficiency 2 [Normal mode], Primary throttle efficiency 2 [Sport mode], Primary throttle efficiency base, Primary throttle efficiency [gear 2], Throttle efficiency idle, Throttle position base

Throttle: direct control: Throttle control limit in additional gear [Normal], Throttle control limit in additional gear [Sport], Throttle direct control limit [1st GEAR], Throttle direct control limit [1st GEAR] AWD High, Throttle direct control limit [1st GEAR] AWD Low, Throttle direct control limit [Reverse GEAR], Throttle direct control limit

Torque model: Calculated torque from load, Engine speed by throttle position, Maximal engine torque, Torque Limiter, Torque limiter by temperature, Maximal torque

Vehicle speed limit: Vehicle speed limiter (if found)

Available maps for MCU0 8A220-X2XXX:

Air Control: Air mass flow sensor slope, Maximum MAP sensor

Deactivation: Deaclivation turbo charger protection

Engine Torque: Limiter of maximum torque, Torque request during take off condition in additional mode, Maximum Boost Limiter of Turbo Pressure

Injection Warm Up: Injection warm up in additional mode
Rail Pressure: Rail Pressure in additional mode

Torque model: Limiter of Maximum torque, Optimal engine torque

Spark Advance: Minimum Spark Advance, Spark Advance, Spark Advance base , Spark Advance correction , Spark Correction Water temperature

DTC mask is in development and will be added ASAP

Supported SW list
