Module Honda Moto
Module for editing files from Honda bikes, scooters and ATVs with Keihin & Shindengen ECUs.
In case of big difference between Keihin ECU types for extreme vehicles set of maps available for editing can be different for each file. Indicative set of maps was grouped by types.
For KEIHIN ECUs:
- Axis conversion curves: engine load, engine speed, throttle position
- Engine speed limitation (BY REQUEST)
- Desired idle speed, idle speed regulator parameters
- Injection time in closed/open loop, injection time correction, lambda to switch between open/closed loop
- Lambda regulation maps
- Spark advance base maps, spark advance at idle, spark advance in limp mode
- Start engine speed
- Warm up factors for injection time
DTC TABLE IS NOT SUPPORTED ON THIS TYPE
Map list can be not full for some files!
All maps are divided by 2 operation modes (Normal, Sport).
- Axis conversion curves: engine load, engine speed, throttle position
- Engine speed limitation
- Flaps close/open engine speed
- Injection time by engine load, injection time by throttle position
- Modes switch for engine load or TPS injection maps switch by throttle position
- Scalings for sensors
- Spark advance base, spark advance at full load, spark advance at idle, spark advance correction by in coolant temperature, spark advance at neutral gear/clutch
- Steering damper control
- Vehicle speed limitation (BY REQUEST OR IF FOUND)
Flags (ADDING BY REQUEST): O2 sensor enabled flags, O2 heater enabled flags, immobilizer enabled flag, flaps operation enabled flags
DTC TABLE IS NOT SUPPORTED ON THIS TYPE
- Axis conversion curves: engine load, engine speed, throttle position
- Engine speed limitation

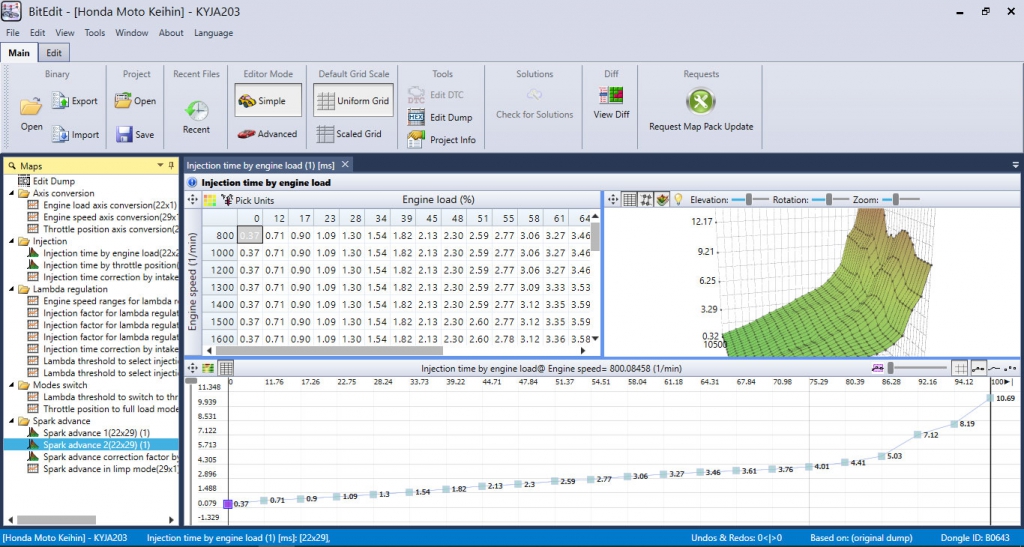

- Injection time by engine load, injection time by throttle position

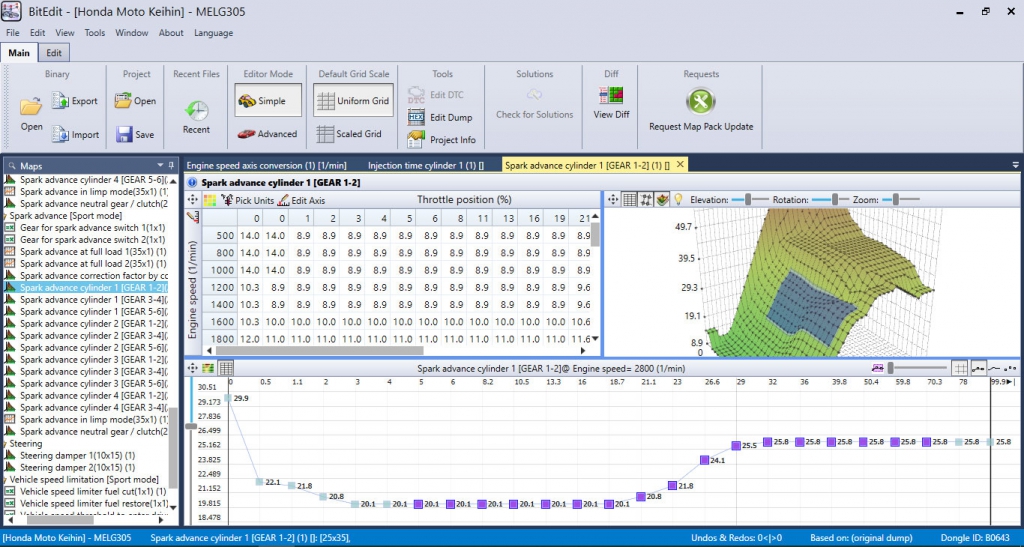

- Spark advance at idle, spark advance in limp mode, spark advance base by gear
- Desired throttle position in normal, sport, sport+ modes
- Vehicle speed limitation
Flags (BY REQUEST): O2 sensor enabled flags, O2 heater enabled flags, immobilizer enabled flag
DTC TABLE IS PRESENT
- Axis conversion curves: engine load, engine speed, throttle position
- Engine speed limitation
- Injection time by engine load, injection time by throttle position
- Spark advance at idle, spark advance in limp mode, spark advance base by gear, gear switches to select maps
- Desired idle speed
- Modes switch by throttle position for injection time maps selection
- Vehicle speed limitation
FLAGS are in development

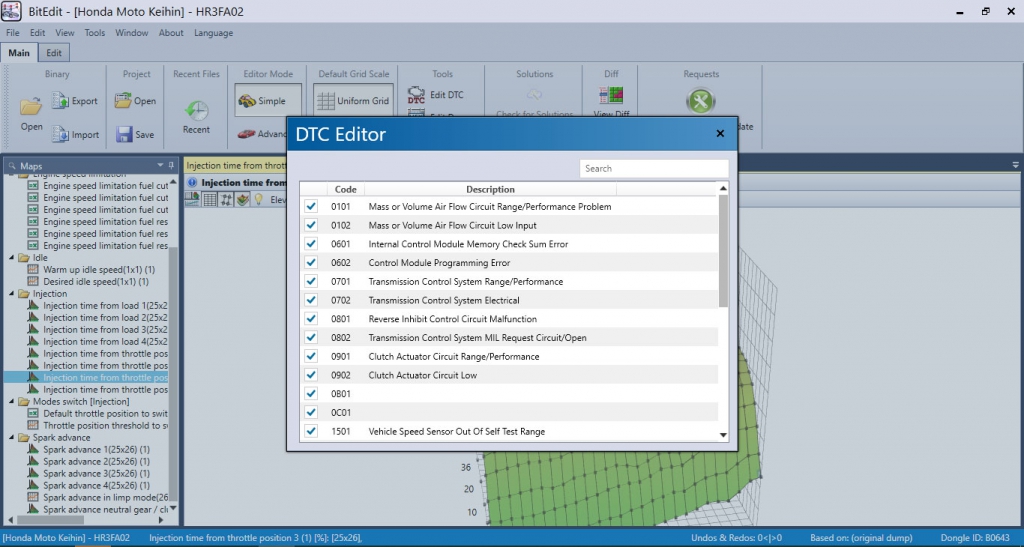

DTC TABLE IS PRESENT
- Limiters: Engine speed limitation, Vehicle speed limitation
- Injection: Injection time by intake pressure, Injection time by throttle position
- Secondary injection: Secondary injection time by intake pressure, Secondary injection time by throttle position
- Spark advance full load: Spark advance at full load base, Spark advance at full load in additional cylinder
- Spark advance: Spark advance base, Spark advance in additional cylinder
DTC TABLE IS NOT SUPPORTED ON THIS TYPE
For Shindengen ECUs V850/RH850:
- Axis: Engine speed (900-9600), Engine speed (3000-9000), Engine speed (1000-9000), Engine speed (2000-9000), Throttle position
- Fuel: Injection time from throttle position in additional mode, Target air/fuel ratio, Idle injection time
- Injector: Injector duration, Injector timing,
- Limiters: Engine speed limitation in additional mode
- Setting: Desired throttle position, Steering damper in additional mode
- Start of injection: Start of injection Cold, Start of injection Warm
- Spark Advance: Main spark advance, Main spark advance at enter full load, Spark advance in limp mode
Attention! URGENT requests are not allowed for this module.
Supported SW list
License cost:
500.00 450 Eur.
(till 07.01.25)
Order
Module requires security USB dongle
